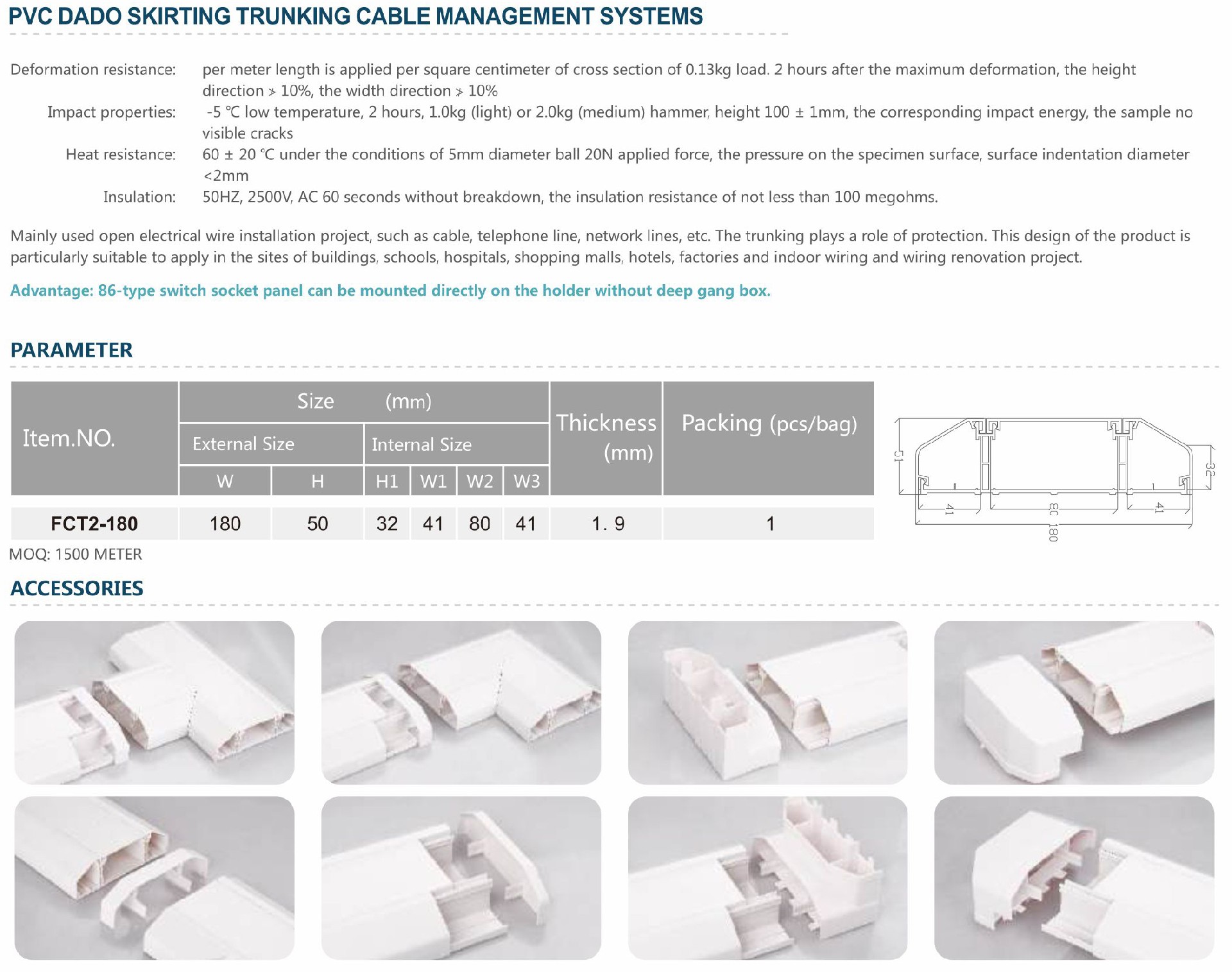

PVC DADO SKIRTING TRUNKING CABLE MANAGEMENT SYSTEMS

Deformation resistance:    per meter length is applied per square centimeter of cross section of 0.13kg load. 2 hours after the maximum deformation, the height

                                          direction ≯ 10%, the width direction ≯ 10%

           Impact properties:    -5 °C low temperature, 2 hours, 1.0kg (light) or 2.0kg (medium) hammer; height 100 ± 1mm,the corresponding impact energy, the sample no visible cracks

              Heat resistance:    60 ± 20 °C under the conditions of 5mm diameter ball 20N applied force, the pressure on the specimen surface, surface indentation diameter  <2mm

                        Insulation:  50HZ, 2500V, AC 60 seconds without breakdown, the insulation resistance of not less than 100 megohms.

Mainly used open electrical wire installation project, such as cable, telephone line, network lines, etc. The trunking plays a role of protection.This design of the product is particularly suitable to apply in the sites of buildings, schools, hospitals, shopping malls,hotels, factories and indoor wiring and wiring renovation project.

Advantage: 86-type switch socket panel can be mounted directly on the holder without deep gang box.
